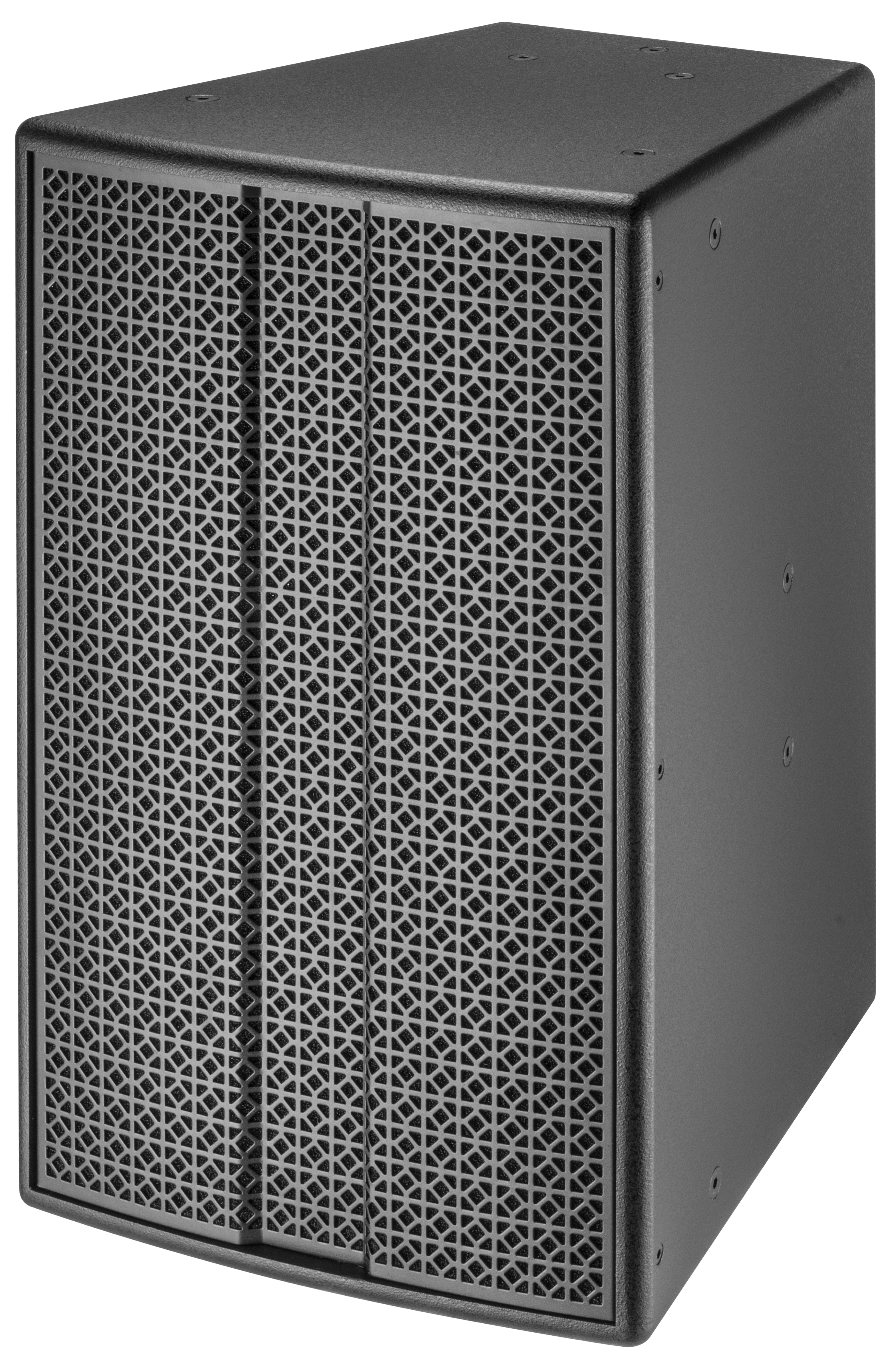

ES100 Series KTV Speakers
10"Two-way KTV Speakers
ES100 is a 10-inch speaker for entertainment sound reinforcement.
Composed of a 34mm voice-coil tweeter,and a 65 voice-coil woofer , with a rear bass-reflex design.
Made of plywood and MDF cabinet with point paint finishing.
Generates full sound and penetrating vocal.
Support vertical hanging / horizontal hanging / support stand and other installation methods.
Frequency Response：50Hz-20KHz
Sensitivity：95dB/M/W
Maximum SPL：121dB Peak
Rated Power：300W AES,1200W peak
LF Drivers: 1×10＂(250mm)/2.5＂voice coil
HF Drivers: 1×1＂(25mm)/1.4＂voice coil
Coverage：70°×100°(H x V)
Nominal Impedance：8 ohm
Net Weight：16.5kg
Dimensions(WxDxH)：327 × 338× 530mm
