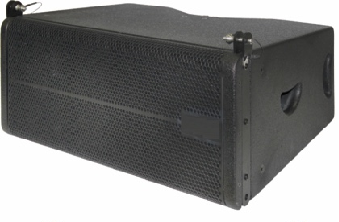

ELA210 Series

Dual 10"Two-way Passive Line Array Speaker

ELA210 is a dual 10-inch two-way high performance line array speaker, with classical compact design and systematic high-precision array unique style, which is widely used in different performance. It is composed with a 3-inch tweeter, configured with accurate linear acoustic wavefront tweeter horn, to achieve accurate and uniform acoustic coverage. It also applies two 10-inch bass/midrange woofer which is developed for the mid and low range frequency in the line array system. The crossover well-turned. It operates at high power with low distortion. the coverage angle has strong constant directivity and keep the consistency of sound in different angles.  The speaker is suitable for the performance hall and mobile events that requires high definition.





Frequency Response:70 Hz - 20 kHz

Sensitivity(1W@1m): 97dB  (passive mode)

Nominal Impedance: 8Ω

Rated Power: HF 80W AES,320W peak (Bi-amp mode)

             LF 500W AES,2000W peak (Bi-amp mode)

LF Components: 2×8"(200mm)/2" voice coil

HF Components: 2×1"(25mm)/1.75"voice coil Neodymium

Coverage: 110°×7.5°(H×V)

Maximum SPL: 126dB continuous,132dB peak

Connectors: 2×Speakon NL4

Net Weight: 22.5kg

Dimensions(W×D×H): 640x470x260 mm
