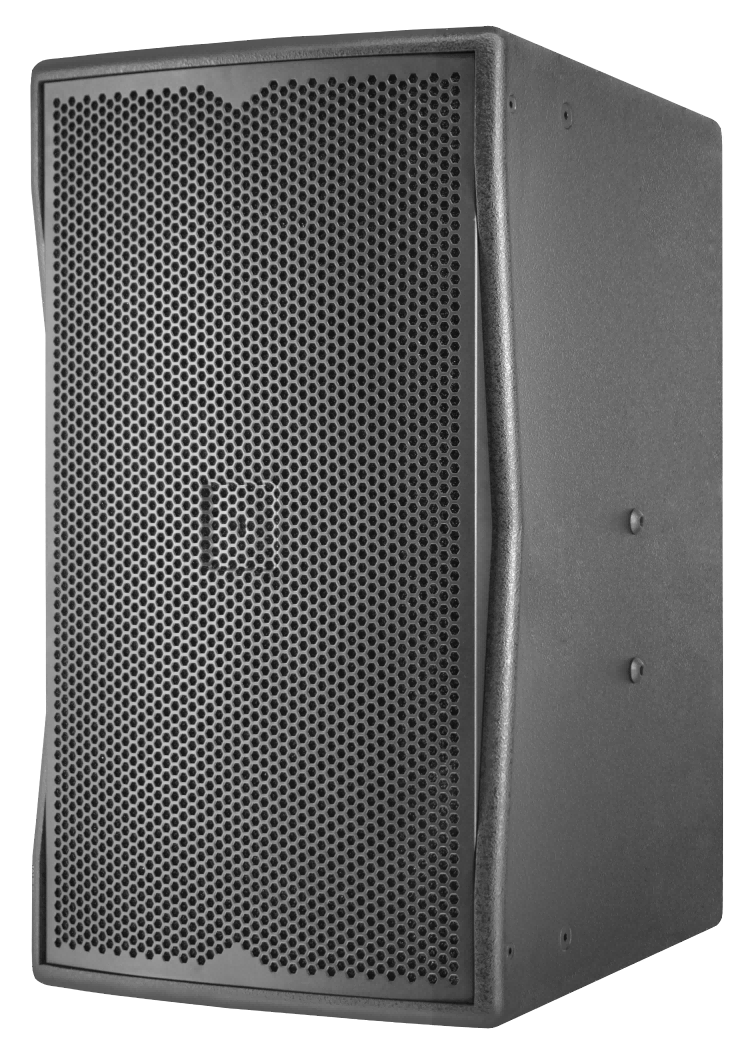

EF12+ Series Multifunctional Professional Speakers
12" Two-Way Full Range Speaker
EF12 is a 12-inch two-way full-range professional speaker.
Composed of a 44mm voice-coil B&C tweeter,and a 12-inch woofer with a 75mm voice-coil, loaded in a rear bass reflex plywood cabinet with baking paint.
Generates full sound and trnasparent voice.
Support vertical hanging / horizontal hanging / rear support stand or bottom support stand and other installation methods.
Frequency Response：50Hz-20KHz
Sensitivity：97dB/M/W
Maximum SPL：125dB continuous,131dB peak
Rated Power：450W AES,800W Peak
LF Drivers: 1×12＂(300mm)/3＂voice coil
HF Drivers: 1×1＂(25mm)/1.75＂voice coil B&C
Coverage：90°×60°
Nominal Impedance：8 ohm
Connectors：2×Speakon NL4
Net Weight: 19.7kg
Dimensions(WxDxH):350×390 ×600mm
