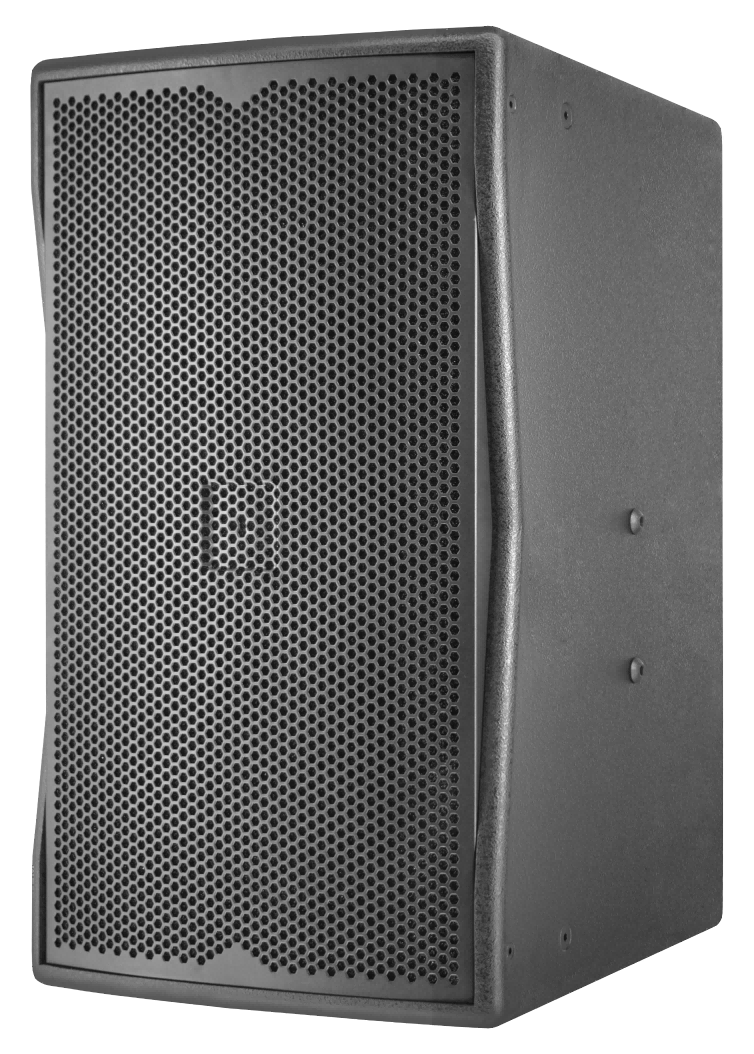

EF10+ Series Multifunctional Professional Speakers
10" Two-Way Full Range Speaker
EF10+ is a 10-inch two-way full-range professional speaker.
Composed of a 34mm voice-coil B&C tweeter,and a 10-inch woofer with a 65mm voice-coil, loaded in a rear bass reflex plywood cabinet with baking paint.
Generates full sound and trnasparent voice.
Support vertical hanging / horizontal hanging / rear support stand or bottom support stand and other installation methods.
Frequency Response：60Hz-20KHz
Sensitivity：96dB/M/W
Maximum SPL：122dB continuous,128dB peak
Rated Power：300W AES, 1200W Peak
LF Drivers: 1×10＂(250mm)/2.5＂voice coil
HF Drivers: 1×1＂(25mm)/1.4＂voice coil B&C
Coverage：90°×60°
Nominal Impedance：8 ohm
Connectors：2×Speakon NL4
Net Weight: 15.3kg
Dimensions(WxDxH):320×350 ×530mm
