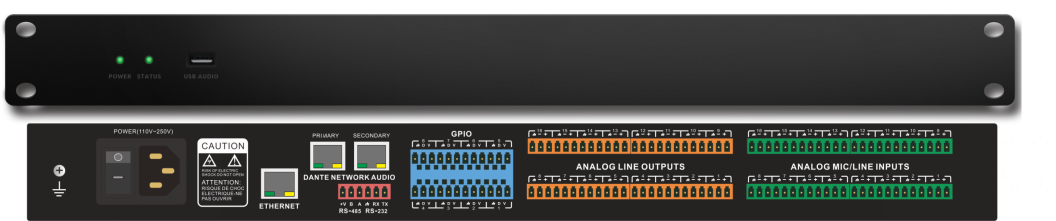

DANTE with 1616

Analog input channels: 16

Analog output channels: 16

Dante input channels: 16

Dante output channels: 16

Processor:ADI SHARC 21489@450 MHz SIMDx2;

DSP processing power:400 MIPS, 1.6 GFLOPS.

Sample Rate:48 kHz, ± 100 ppm.

THD+N:<-94dB @17dBu

Input Dynamic Range: 110dB

Output dynamic range: 112dB

Processing modules are configurable and can be freely replaced according to demand;

Provide 8 devices to operate online at the same time;

Built-in one in one out USB sound card, support music playback, recording and soft video conferencing (such as: ZOOM, Tencent conference, nail conference, etc.);;

Bus AEC with long tail time: 512ms, convergence rate: 60dB/S, echo cancellation amplitude: 60dB;

AFC (Feedback Suppression) for independent channels, with trap algorithm, Acoustic transmission gain enhancement: 10dB;.

Noise Suppression (ANS), signal-to-noise ratio improvement of 18dB

Dodger (Ducker);

Noise gain compensator (ANC)

Gain Sharing Auto Mixer (AMC), Gate Auto Mixer (Gate Mixer);

12-band British Parametric Equalization (EQ), providing 5 filter choices: Parametric,Lowshelf,Highshelf,Lowpass,Highpass;

Provide end-user customized interface, maximum support for 30 devices with the same interface management;

Support camera tracking;

With 8-way GPIO;

With central control function, support RS232, RS485, UDP three kinds of control mode, can be on the system of power supply, signal switching, environment control, audio and other overall control, to realize a key to open the system required functions.

Customized user interface should be provided;

USB sound card needs to be built-in to support recording and teleconferencing;

The processor chip adopts ADI architecture, not less than 40bit DSP floating-point computing engine, and provides freely formulated software architecture;

Through the machine can control third-party equipment;

The number of analog input and output channels is not less than 16*16;

The number of Dante input and output channels is not less than 16*16;

Input and output quantization is not less than 48KHz/24bit;

The input channels should have:

Input gain 3dB step, not less than 16 stops;

Not less than 12-band PEQ , and provide no less than five filter type selection;

Adaptive Echo Cancellation (AEC), Noise Suppression (ANS);

Gain Sharing Auto Mixer (AMC), Gate Auto Mixer (Gate Mixer);

Auto Gain (AGC).

Dodger (Ducker);

Noise Gain Compensator (ANC).

Camera Tracking;

Each channel should have no less than 16 points of adaptive feedback suppression (AFC);

Output channels should have:

Not less than 12-band PEQ,31-band GEQ, crossover, delay, limiter.

No less than 36 x 33 matrix;

No less than 16 groups of presets;

Support input and output channel LINK and grouping function;

A/D dynamic range not less than 110dBu;

D/A dynamic range of not less than 110 dBu.

Frequency response range is not less than 20～20kHz (±0.15dB) ;．

Total Harmonic Distortion (THD+N) not less than 0.002% @1kHz, +4dBu ;Â
