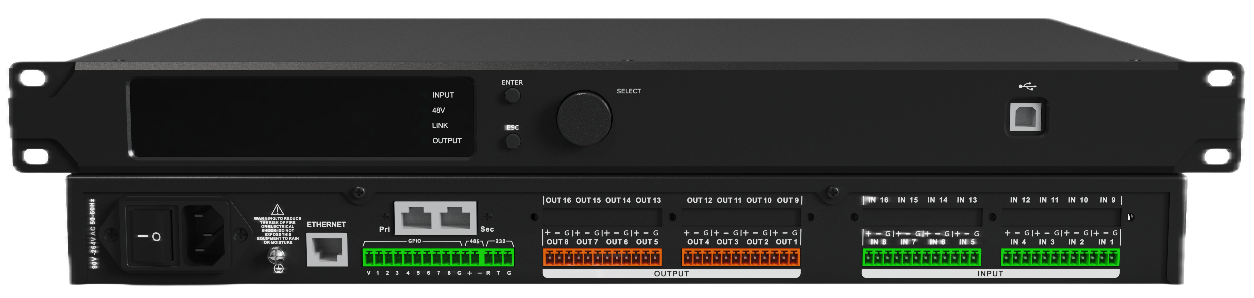

DE816 Series DANTE DSP
DE816 Series DANTE DSP
1, 8-way analog balanced input / 8-way analog balanced output, the maximum input and output 17dBu (5.48Vrms) without distortion
2、Input each channel with 48V phantom power supply
3, input each channel with microphone amplifier, 0 ~ 40dB gain adjustable, step 1dB
4, stereo USB sound card function, support playback and recording
5, USB interface, computer software control and USB sound card transmission function
6, RS232 interface, computer software control and central control function
7, RS485 interface, computer software control and central control function
8, network interface, computer software control and central control function, through the network connection can manage multiple devices at the same time
9, external 8-way GPIO interface
10, LCD screen, support configuration device name, device preset, device IP, input volume, output volume, input mode, device version view and other functions
11, DSP functions are, AFC (feedback suppression), AEC (echo cancellation), ANC (noise cancellation), AGC (auto gain) AUTO MIX (automatic mixing), MATRIX MIX (matrix mixing), noise gate, PEQ (parametric equalizer), delay, FIR filter, high and low-pass crossover, compressor, limiter
12, input 15-band PEQ, output 10-band PEQ
13, each channel input 2000ms delayer, output 2000ms delayer
14, output per channel 512 Tap FIR
15, input per channel voice excitation function (camera tracking), support with PELCO-D, PELCO-P, VISCA agreement
Camera control
16、60 preset memory positions
17、Support line control box control
18, Android APP network control
19、Support archive locking, hide the setup parameters, to ensure the technical safety of the project 20、16-channel Dante input / 16-channel Dante output
1、DSP chip
Signal processing 32bit float point dsp 400Mhz
Audio system delay < 3ms
Digital to analog conversion 24-bit
Sampling rate 48KHz
2, analog audio input and output ANALOG AUDIO INPUTS AND OUTPUTS
Input channels 16 balanced inputs. Mic/line level
Audio interface 3.81 mm phoenix plug, 12-pin
Input Impedance 16kΩ
Maximum input level 17dBu (5.48Vrms) /Line; -3dBu (0.54Vrms)
/Mic@20dB Gain Stage
Phantom power +48VDC, 5.5mA, per channel configuration
Output Channels 8 balanced outputs, line level
Output Impedance 150Ω
3、AUDIO PERFORMANCE SPECIFICATIONS
Frequency Response Curve 20Hz-20kHz(±0.5dB)/Line, Input 0dBu (0.775Vrms)
20Hz-20kHz(±1.5dB)/Mic, 20dB Gain Stage, Input
-10dBu (0.245Vrms)
THD+N -90dB(@17dBu,1kHz,A-wt)/Line
-90dB(@-6dBu,1kHz,A-wt)/Mic, 20dB gain
S/N Ratio 110dB(@17dBu,1kHz,A-wt)/Line
100dB(@-6dBu,1kHz,A-wt)/Mic, 20dB gain
4、Connection and Display COMMUNITATION PORTS AND INDICATORS
USB Type-B 2.0, drive-free
RS232 Serial port communication Serial port communication
TCP/IP network port RJ-45
Indicators Link, +48V, input and output audio signals
5、Electrical and physical parameters ELECTRICAL AND PHYSICAL
Power supply range 90V-264V AC 50-60 Hz
Operating Temperature -20℃~60℃
Net Weight 3.3KG
Dimension (W*D*H) 483mm*265mm*44.5mm
