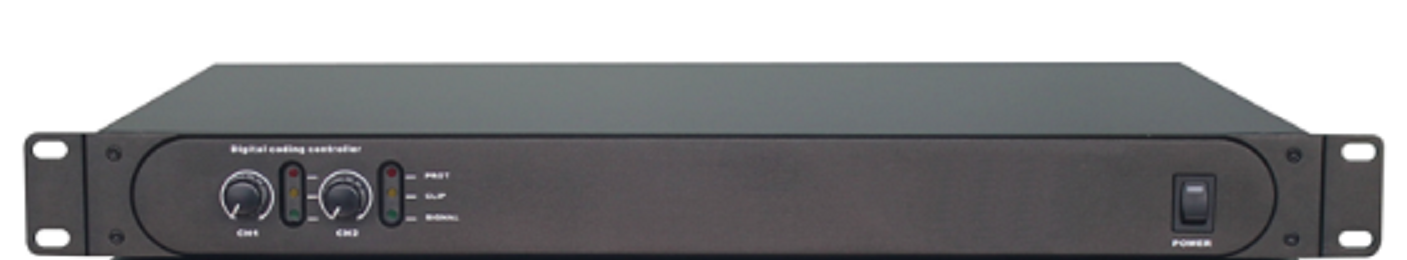

D3502 Series Digital Power Amplifier
D3502 Series Digital Power Amplifier
advantages.
2, XLR seat input, using XLR seat cascade output.
3、Support 4/8Ω fixed resistance output, you can access the fixed resistance speaker.
4、Built-in temperature protection device, the device will automatically cool down with the stable rise function.
5, output DC protection, output overload protection, with protection lights to remind.
6, support for hot ground cold ground switching.
D2350 technical parameters
8Ω stereo power: 2x350W
4Ω stereo power: 2x400W
Input connector: XLR female
Input impedance: 10KΩ balanced
Input sensitivity: 0.775V
Input Common State Rejection Ratio: >80dB
Output Connector: Speakon Block
Signal-to-noise ratio: >103dB
Damping factor: > 400 @ 8Ω
Total Harmonic Distortion: <0.05% (20 Hz-20 kHz 1W)
Frequency Response: 20Hz-20KHz(+0/-1dB,1W/8Ω)
Level Adjustment: front panel potentiometer
Cooling mode: stepless speed fan, airflow from front to back
Amplifier protection mode: short circuit, disconnection, DC voltage, overheating, overvoltage
Power supply specification: AC voltage 180-240V 50-60Hz
Chassis size (H*W*L): 44mm x 483mm x 242mm
Package size (H*W*L): 105mm x 550mm x 370mm
Net Weight: 3.5KG
Gross Weight: 4.5KG
