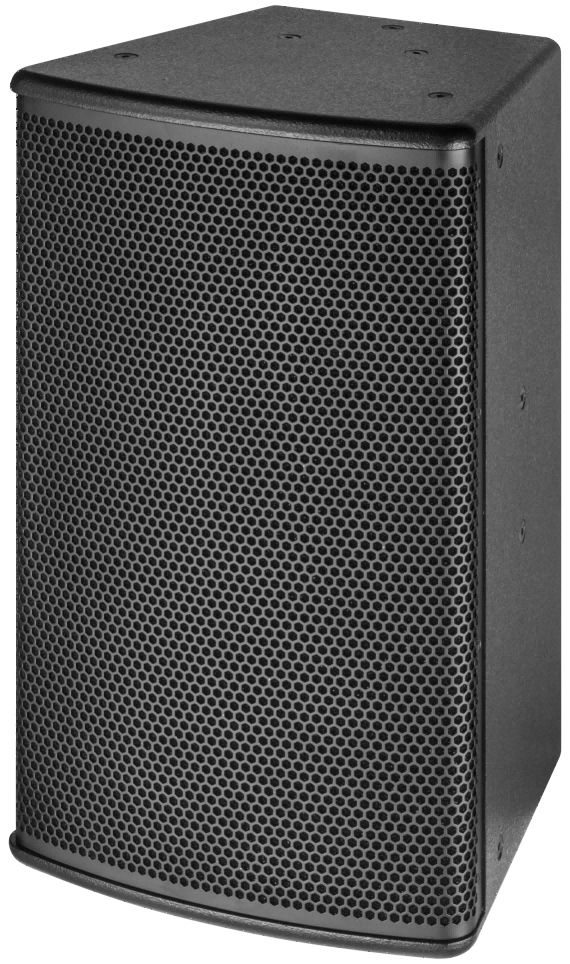

CV12 series Full-rangespeakers (Conference, Ball Room Filler, etc.)
12" Two-Way Speaker
It is composed of a 1.75" voice coil tweeter and a 12-inch woofer.
MDF cabinet with point-paint finishing on the surface.
Clear sound and full vocals.
Support top hanging / horizontal hanging / rear support and other installation methods.
.
Frequency Response：50Hz-20KHz
Sensitivity：96dB/M/W
Maximum SPL：122dB continuous,128dB peak
Rated Power：350W AES,1400W Peak
LF Drivers: 1×12＂(300mm)/2.5＂voice coil
HF Drivers: 1×1＂(25mm)/1.75＂voice coil
Coverage：80°×50°
Nominal impedance：8 ohm
Protection： Grill
Net Weight: 19.5kg
Dimensions(WxDxH):340×330 ×580mm
