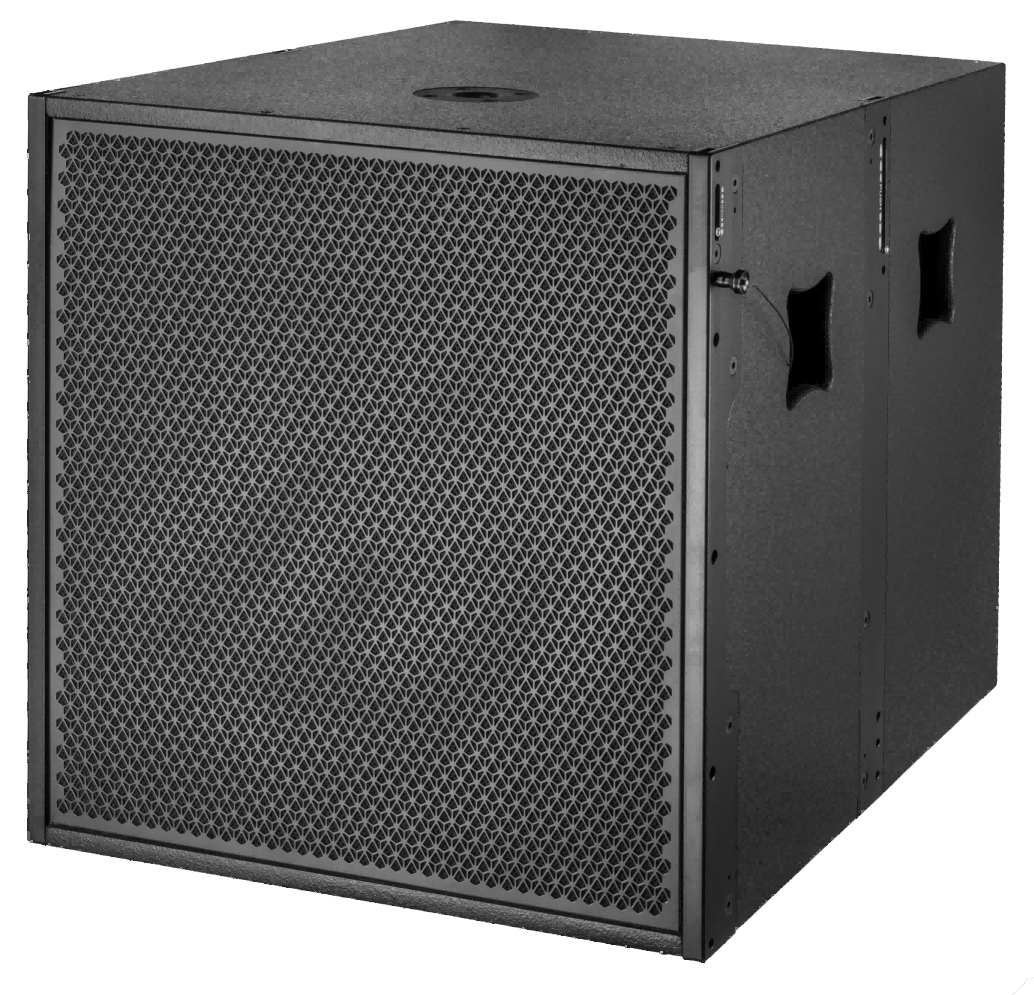

CLA215S Series Passive Line Array Speaker
Dual 15-inch Line Array Subwoofer
Designed to pair with dual 10-inch line array speakers, this subwoofer supports both flown and ground-stacked configurations. Featuring two high-power 15-inch woofers, it delivers high sound pressure levels and high-fidelity audio performance. The system achieves a powerful SPL output with an adjustable full-frequency response range, making it ideal for large-scale fixed installations and touring sound reinforcement systems.
Frequency Response: 35Hz – 300Hz
Sensitivity (1W\@1m): 105dB
Nominal Impedance: 4Ω
Rated Power: 1200W AES, 4800W peak
LF Drivers: 2 × 15″ (385mm) / 4″ voice coil
Max SPL: 134dB continuous, 140dB peak
Connectors: 2 × Speakon NL4
Net Weight: 70kg
Dimensions (W×D×H): 824mm × 630mm × 660mm
