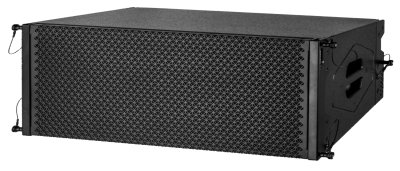

CLA210 Series Passive Line Array Speaker

CLA210 Series Passive Line Array Speaker

CLA210 is a dual 10-inch two-way high efficiency line array speaker, with classical compact design and systematic high-precision array unique style, which is widely used in different performance. It is composed with a 3-inch neodymium magnet tweeter, integrated with accurate linear acoustic wavefront tweeter horn, to achieve accurate and uniform acoustic coverage. It also applies a 10-inch neodymium magnet bass/midrange woofer which is developed for the mid and low range frequency in the line array system. The crossover well-turned. It operates at high power with low distortion. the coverage angle has strong constant directivity and keep the consistency of sound in different angles. The speaker is suitable for the performance hall and mobile events that requires high definition.

Frequency Response: 52Hz-20KHz

Sensitivity(1W@1m): 101dB (passive mode)

HF 113dB LF 105dB (Bi-amp mode )

Nominal Impedance: 8Ω

Rated Power: HF 150W AES,600W peak (Bi-amp mode)

LF 650W AES,2600W peak (Bi-amp mode)

LF Components: 2×10"(250mm)/2.5" voice coil Neo

HF Components: 1×1.5"(38mm)/3"voice coil Neo

Coverage: 115°×15°(H×V)

Maximum SPL: 131dB continuous,137dB peak

Connectors: 2×Speakon NL4

Net Weight: 32kg

Dimensions(W×D×H): 824mm×400mm×302mm
