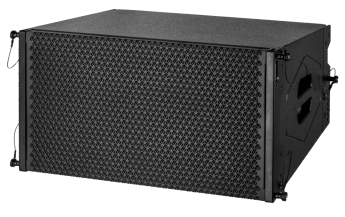

CLA10 Series Passive Line Array Speaker
Single 10"Two-way Passive Line Array Speaker
CLA10 is a single 10-inch two-tweeter high efficiency line array speaker, with classical compact design and systematic high-precision array unique style, which is widely used in different performance. It is composed with two 1.75-inch neodymium magnet tweeter, integrated with accurate linear acoustic wavefront tweeter horn, to achieve accurate and uniform acoustic coverage. It also applies a 10-inch neodymium magnet bass/midrange woofer which is developed for the mid and low range frequency in the line array system. The crossover well-turned. It operates at high power with low distortion. the coverage angle has strong constant directivity and keep the consistency of sound in different angles. The speaker is suitable for the performance hall and mobile events that requires high definition.
Frequency Response 60Hz-20KHz
Sensitivity(1W@1m) 101dB (passive mode)
HF 113dB LF 105dB (Bi-amp mode )
Nominal Impedance: 8Ω
Rated Power: HF 60W AES,240W peak (Bi-amp mode)
LF 320W AES,1280W peak (Bi-amp mode)
LF Components: 1×10"(250mm)/2.5" voice coil Neo
HF Components: 2×1"(25mm)/1.75"voice coil Neo
Coverage: 115°×15°(H×V)
Maximum SPL: 128dB continuous,134dB peak
Connectors: 2×Speakon NL4
Net Weight: 16.7kg
Dimensions(W×D×H): 570mm×400mm×302mm
