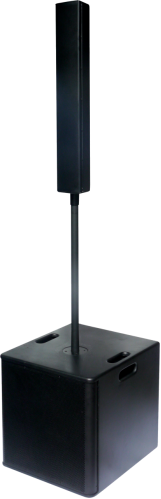

CL835

Frequency Response (-6dB):140Hz-20KHz

Output Power:240W Continuous,480W Program,960W Peak

Sensitivity (1W/1M):97dB

Maximum SPL@1m:127dB Max

Impedance:40hm

LF:7x3.5”Woofer/1"Voice Coil,

HF:1 x 3.5"wideband speaker with 1 x 1.35"coaxial tweeter

Crossover Frequency:350Hz,24dB/Oct.ACTIVE

Dispersion(-6dB):100°Horizontal

Enclosure Construction:Body In extruded wood,black paint

Mounting:One metal pole-mount,two M8 hanging-points

Net Weigh:6.98 Kg

Dimensions (HxWxD):130x760x103mm

CL15SA SUB

Total amplifier power:1400W PROGRAM/2800W PEAK Class-D

Amplifier,subwoofer:700W PROGRAM/1400W PEAK Class-D

Amplifier,satellite/mid-high unit:700W PROGRAM/1400W PEAK Class-D

Axial sensitivity 1W@1m:96dB/130dB Max

Electronic Protections:Thermal DC/Overload /Digital Compressor /Limit

Cooling:Temperature-controlled fan

Connections:nput:2 Combo -XLR 1/4”,1 RCA in L&R/Output:SPK Satellite /XLR Link

External Controls:Volume Control /Switch for Input sens /Swtich for mode selector /Power

Power Supply:110-120V~50/60Hz,220-240V~50/60Hz Switchable

Enclosure Construction:Plywood cabinet,resistant black paint,metal grille with foam,rubber feet,handles

Mounting:One metal standard 35mm pole-mount

Net Weight:28.3 Ke

Dimensions (HxWxD):520×480×562 mm
