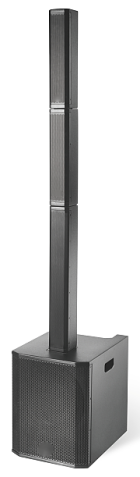

CL8B/CL8C:3.5＂ Passive Column Speaker

Frequency Response:160Hz-20kH

Sensitivity(1W@1m) : 95dB

Nominal Impedance: 8 Ω

Rated Power: 120W Continuous, 240W Program, 480W Peak

Full Range Driver:4×3.5＂(75mm)/ 1＂voice coil

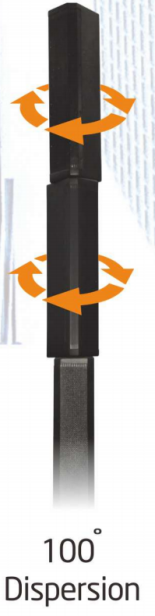

Dispersion: 100°×5°

Maximum SPL: 122dB

Connectors:Parallel or Series, 6.3mm Socket/Selection Switch

Net Weight: 3.5kg

Dimensions(W x D x H): 106.6 mm × 98mm× 448mm

Connecting Column HX1: No driver inside,

Height: 646mm

Net Weight: 2.4kg

CL12SA：12"Active Subwoofer Speaker Cabinet

Frequency Response：40Hz-500 Hz(-6dB)

LF：1x12”Woofer/2.5"Voice Coil

Total Amplifier Power：1000W Continuous /2000W Program /4000W Peak /Class-D

Amplifier,Subwoofe：500w Continuous /1000W Program /2000W Peak /Class-D

Amplifier,Satellite：500W Continuous /1000W Program /2000W Peak /Class-D

DSP Preset：Center /Open /User

Sensitivity (1W/1M)：96dB

Maximum SPL@1M：130dB Max (Calculated)

Electronic Protections Thermal DC/Overload /Digital Compressor /Limiter

Cooling：Temperature controlled fan

Connections：Input:2 Combo-XLR&1/4",RCA In L&R,1 XLR Thru &Mix out

External：Volume Control /Switch for Input sens /Swtich for mode selector /Power ON with Green LED /Limiter with Red LED/Ground Lift /

Controls：IP Control /MP3 including

Power Supply：115V/230V~50/60Hz

Enclosure Construction Plywood Cabinet,Resistant Black Paint,Metal Grille with Foam,Rubber Feet,handles

Mounting：Holder with Input Jacks for VA-WP

Net Weight：20.51Kg

Dimensions (HxWxD)：450x430x480 mm
