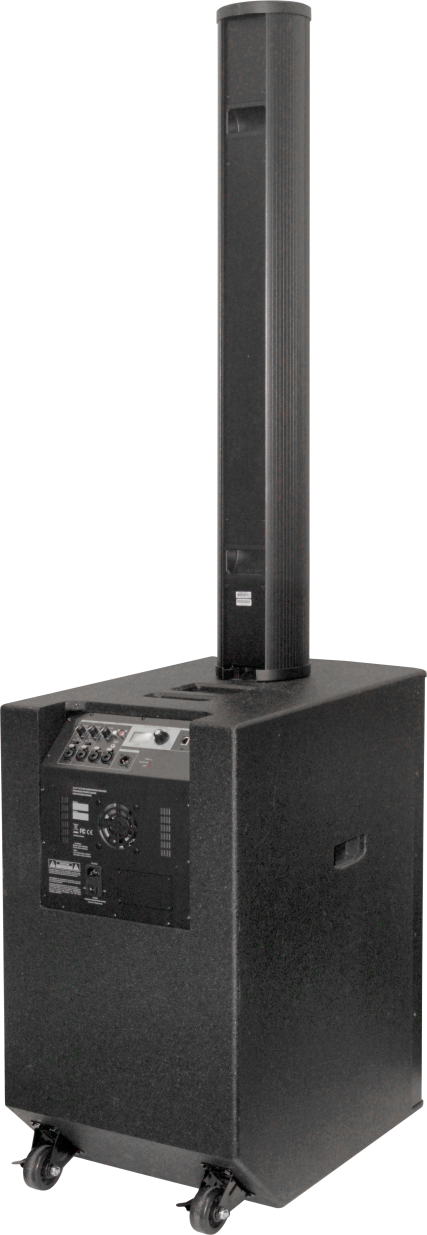

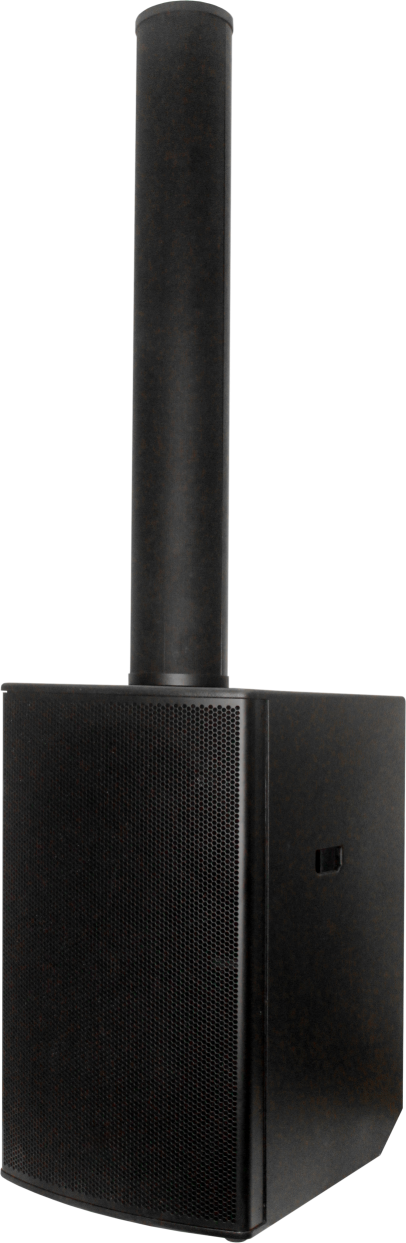

The system:

Frequency Response: 35Hz – 20KHz (-10dB)

Total Amplifier Power: 2000W Continuous / 4000W Program / 8000W Peak Class D @ 4 Ohms

Maximum SPL@1M: 134dB

Crossover Frequency: 200Hz

Dispersion (-6dB): 130° Horizontal

Net Weight 50.15Kg

Dimensions (WxHxD) 460 x 2010 x 676mm

CL24 Column Speaker: 24 x 3" Passive Speaker System

Output Power: 480W Continuous, 960W Program, 1920W Peak

Sensitivity (1W/1M): 99dB

Frequency Response (-6dB): 150Hz-20kHz

Impedance: 4 ohms

Full Range: 24 xLow 3" Neodymium, 0.8" (20.4mm) Voice Coil

Enclosure Construction； Aluminium Cabinet, Metal Grille, Resistant Paint

Connector： 2 Pin smart connection

Net Weight 9.7Kg

Dimensions (WxHxD)： φ167 x 1170mm

CL215SA SUB: 2 x 15" Active Subwoofer Speaker

Frequency Response (-6dB)： 35Hz – 180Hz

Total Amplifier Powe：r 2000 W Continuous / 4000W Program/8000W Peak Class D @ 4 Ohms

Amplifier, Subwoofer： 1000 W Continuous / 2000W Program/4000W Peak Class D @ 4 Ohms

Amplifier, Satellite： 1000 W Continuous / 2000W Program/4000W Peak Class D @ 4 Ohms

DSP Presets Modes LIVE / Music / SPEECH / DJ

Electronic Protections： Over heat Protection/Short Circuit Protection/Digital Compressor

Cooling Temperature-controlled fan

Connections Input: 4 x Combo-XLR&1/4”, 1 x RCA In L&R, 1 x 3.5 Stereo Jack, Output: 1 x XLR Thru&Mixout

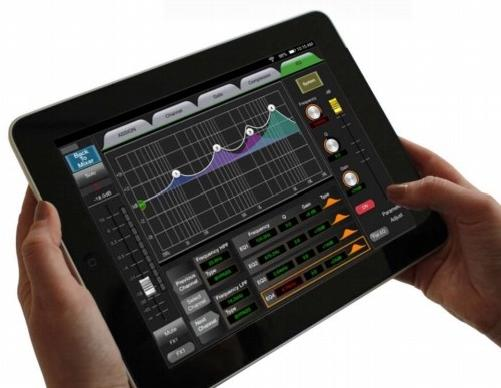

External Controls： Volume Control / Switch for Input sens / Switch for mode selector / Power ON with Green LED / Limiter with Red LED / Ground Lift / OLED DSP Display and Control / IP Control / MP3 and BT (option)

Power Supply： 115V/230V ~50/60Hz Switchable

Enclosure Construction： Plywood Cabinet, Resistant Black Paint, Metal Grille with Foam, Rubber Feet, Integrated side handles

Mounting： Smart Mounting and Connection

Net Weight 40.47Kg

Dimensions (WxHxD) 460 x 830 x 676mm
