CL1 Series Active Column Speakers
Active Portable Column Array System 6x 2.75" Column Speakers+10"Active Subwoofer Speaker Cabinet
• Built-in Class D power amplifier with switching mode power supply,
• Lightweight all-in-one design offers everything you needs
• Fits almost anywhere, and in any room
• Robust and smart cabinet design
• Proven CL1 sound with extra wide coverage
• Adjustable height directs sound toward the ear for optimal coverage and clarity

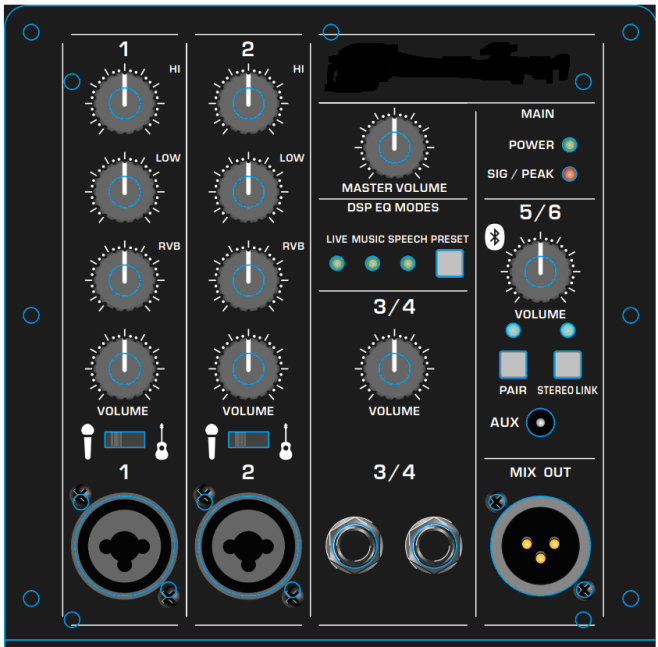

•Input CH1 /CH2 channel, 2-band EQ, XLR+1/4" (6.3mm) JACK mixed input,
instrument and microphone can be switched, and the reverb effect can be
adjusted deeply
• Input CH3/4 channel, 2x 1/4”(6.3mm) JACK socket, suitable for keyboard stereo
input
• Input CH5/6 channel, BT Bluetooth wireless stereo input and other equipment
stereo input such as mobile phone, iPAD, etc.
• BT Bluetooth STEREO LINK can be connected with another CL1 to form a stereo
sound reinforcement system
• Output MIXOUT, mixed output, can be connected to other sound reinforcement
equipment or another CL1
• The sound column box is made of plastic injection molding, light in weight and
beautiful in appearance
• The height of the sound column box is adjusted according to the height of the
listener's ears, so that the sound can be fully covered
Frequency Response:60 Hz–20 kHz (-10 dB)
Rated Power:600W, 1200W Peak
HF Transducer: 6x 2.75" full-range speakers with lightweight Kapton™ voice coil
formers, FEA optimized magnetic circuit construction
SUB WOOFER:1x10”Woofer/2.5"Voice Coil
Coverage: 100°×50°(H×V)
Maximum SPL: 121dB continuous,137dB peak
Power amplifier: System power 1200W peak Class-D
Low /High frequency power rating 700W peak Class-D
Rated THD <1%
DSP preset: LIVE, MUSIC, SPEECH three options
Electronic ProtectionsThermal DC/Overload /Digital Compressor /Limiter
Dimensions (HxWxD):1912 x 343 x 412 mm
Cooling:Temperature controlled fan
Net Weight:17.5Kg
