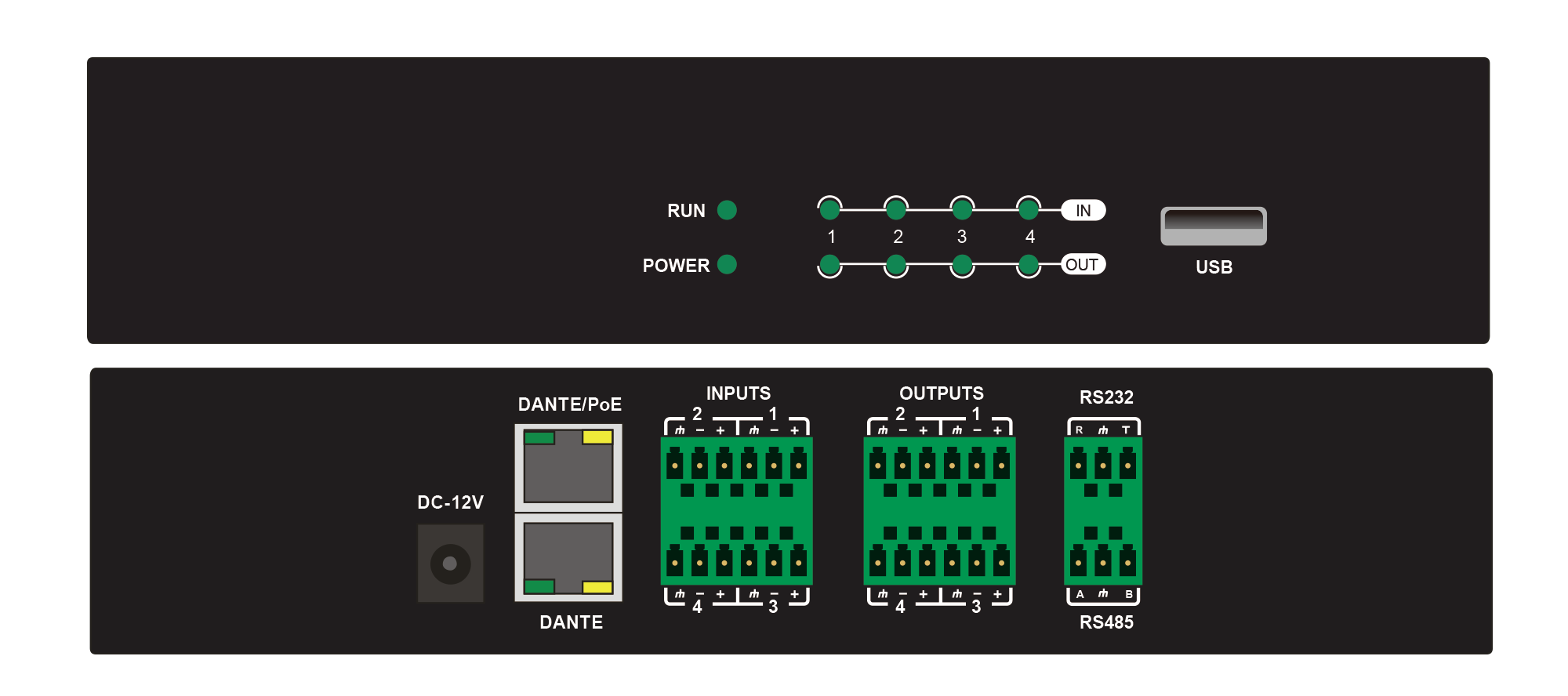

AD44 DANTE Adapter Box
AD44 DANTE Adapter Box
Analog input channels: 4
Analog output channels: 4
Dante input channels: 4
Dante output channels: 4
Dante type: Ultimo 4
Sample rate: 48 kHz, ± 100 ppm.
Input Dynamic Range: 110dB
Output Dynamic Range: 112dB
THD+N:<-100dB @17dBu
Sample Rate/Quantization Bit: 48K/24bit
Number of analog input and output channels:4 x 4
Dante Channel:4x4
Input Gain:0/6/12/18/24/30/36/42/48 dB
Phantom power:+48V/10mA max
Frequency Response(20~20kHz):±0.5dB
Maximum Level:+18dBu
THD+N:<-100dB @17dBu
Dynamic range (analog channel): 110dB
Input Dynamic Range:110dB
Output Dynamic Range:112dB
Channel Isolation @1kHz:108dB
Input impedance (balanced connection): 5.4KΩ
Output impedance (balanced connection): 600Ω
System delay:<3ms
Operating Power:DC12V/PoE 48V
Dimensions (WxDxH): 215 x 162x 44mm
Shipping Weight: 2KG
