Key Features

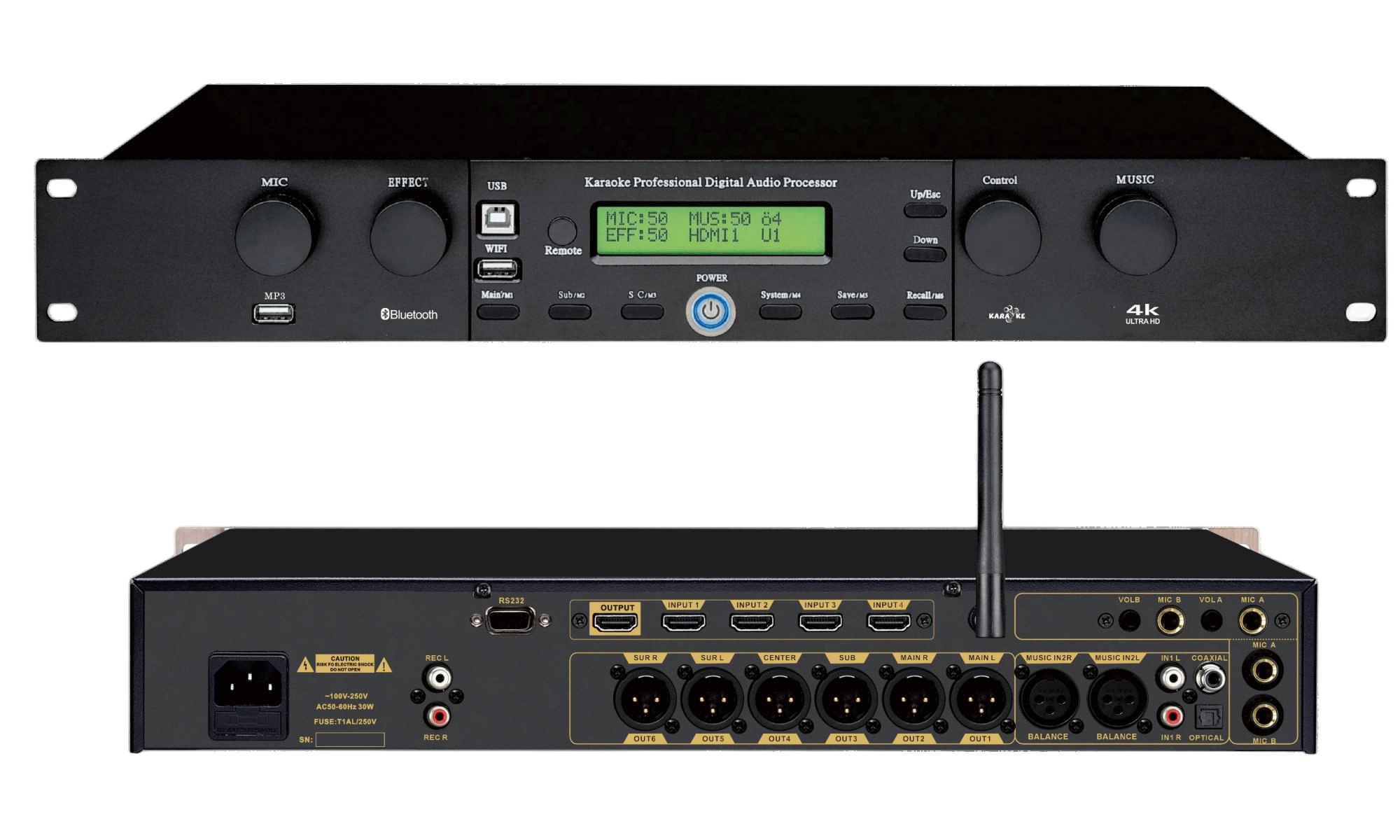

All-in-One KTV & Home Theater Processor

Combines a professional KTV effects processor with a 5.1 home theater audio decoder in one unit, featuring a 2 × 20 LED display.

Multi-Mode Operation

Supports KTV Mode / Cinema Mode / Auto Mode, with one-touch switching and independent parameter adjustment for each mode.

High-Performance DSP Engine

Powered by a 32-bit high-performance DSP, delivering:

112 dB DAC

107 dB ADC dynamic range

SNR: −94 dB THD+N

Advanced Output Processing

6 output channels with independent control

10-band PEQ / LS / HS

High-pass / low-pass filters

Up to 150 ms delay

Mixer volume, limiter, and compressor

Built-in pink noise generator for system tuning

Flexible Input Options

Analog: RCA, XLR

Digital: Coaxial, Optical

HDMI 2.0: 4 inputs / 1 output (supports ARC)

Music Processing

High-pass / low-pass filters: 19.7 Hz – 20.6 kHz (6/12/18/24/36 dB slopes)

15-band PEQ with 0.1 dB step adjustment and independent bypass

3-band dynamic EQ

Noise gate, pitch shift, high-frequency enhancer, low-frequency enhancer

Microphone Processing

Noise gate and 4-level feedback suppression

High/low-frequency enhancement

Dual-channel independent 20-band PEQ (±12 dB / -24 dB range)

Echo & Reverb Processing

Dual echo and reverb engines

Independent 5-band PEQ (±12 dB / -24 dB)

High-pass / low-pass filters: 19.7 Hz – 20.6 kHz (multi-slope options)

Control & Connectivity

WiFi and USB plug-and-play connection

Infrared remote control and front-panel buttons

RS-232 interface for central control integration
